AKG

P420

Details
Variations

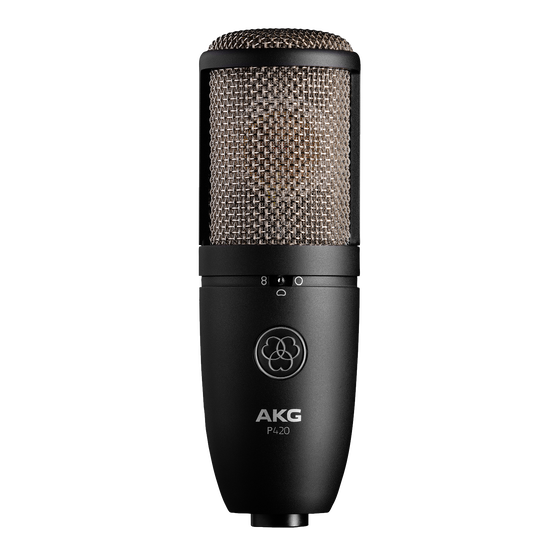

High-performance dual-capsule true condenser microphone

Professional projects

The P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns – cardioid, omnidirectional or figure 8 – it is an ideal tool for stereo miking techniques and ambient recording.

What the Pro’s are Saying

Sound on Sound:

Sound on Sound:

“As an instrument mic, the 420 comes over as well balanced and solid, handling high end detail smoothly without over hyping it or making everything sound too forward. It works well on acoustic guitar, producing a rich, homogenous sound that balances warmth with detail.”

Item# 3101H00430

General Specifications

Audio frequency bandwidth 20 - 20000 Hz
Equivalent noise level 15 dB-A
Sensitivity 28 mV/Pa
Signal to Noise 79 dB-A
Preattenuation Pad -20 dB
Bass cut filter 300 Hz - 12 dB/octave
Electrical impedance <= 200 Ohms
Recommended load impedance >= 1000 Ohms
Polar Pattern Cardioid, Omnidirectional, and Figure of eight

Dimensions

Length 165 mm
Diameter 54 mm
Net Weight 530 g

Audio Output

Type Balanced XLR
Gender Male
Contacts 3-pin

Powering Interface

Voltage 44 to 52 V
Current <= 3 mA

Application

Project Studio Yes

Instrument

Piano / Strings Yes
Horns / Woodwinds Yes
Drums / Percussion Yes
  • 1 x P420 Microphone
  • 1 x Spider Shock Mount
  • 1 x Metal Carrying Case

2 Years
